Rimu Schematic

Electrical and Electronic Schematic Capture Software

Features:

• Easy to use, Rimu Schematic follows concepts you will be familiar with from other Windows based graphical applications.

• Online context-sensitive help system.

• Presentation quality schematics - make a good impression on your employer or customers.

• Spice deck - run simulations of your schematic in any Spice compatible simulator.

• Abel and CUPL HDL - program PLDs
  by drawing the internal logic as a schematic.

• PCB Netlist - import into your PCB layout software for error-free PCB layout.

• Bill of Materials - import directly into your spreadsheet program.

• Supports OLE in place editing - insert diagrams, tables, equations, bitmaps and other objects into your schematic.

• Extensive printing and print preview options.

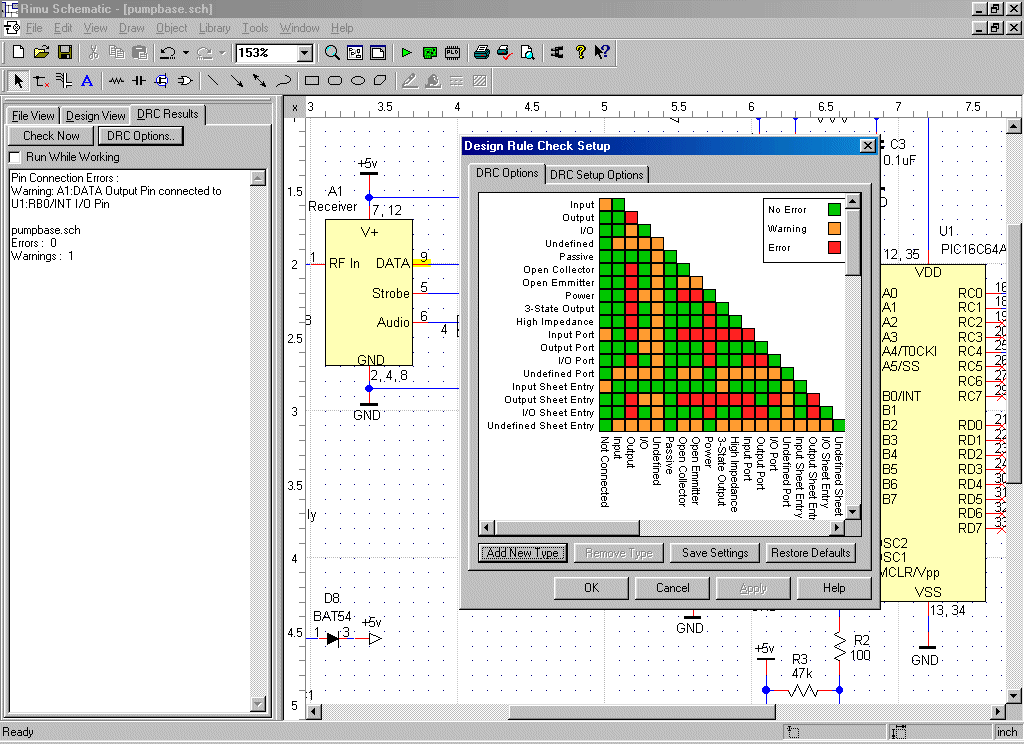

• Design rules checking.

• Hierarchical design with a Sub-circuit Wizard to automatically create sub-circuit symbols from schematics, or vice versa.

• Twenty one libraries supplied containing more than 2000 devices and symbols.

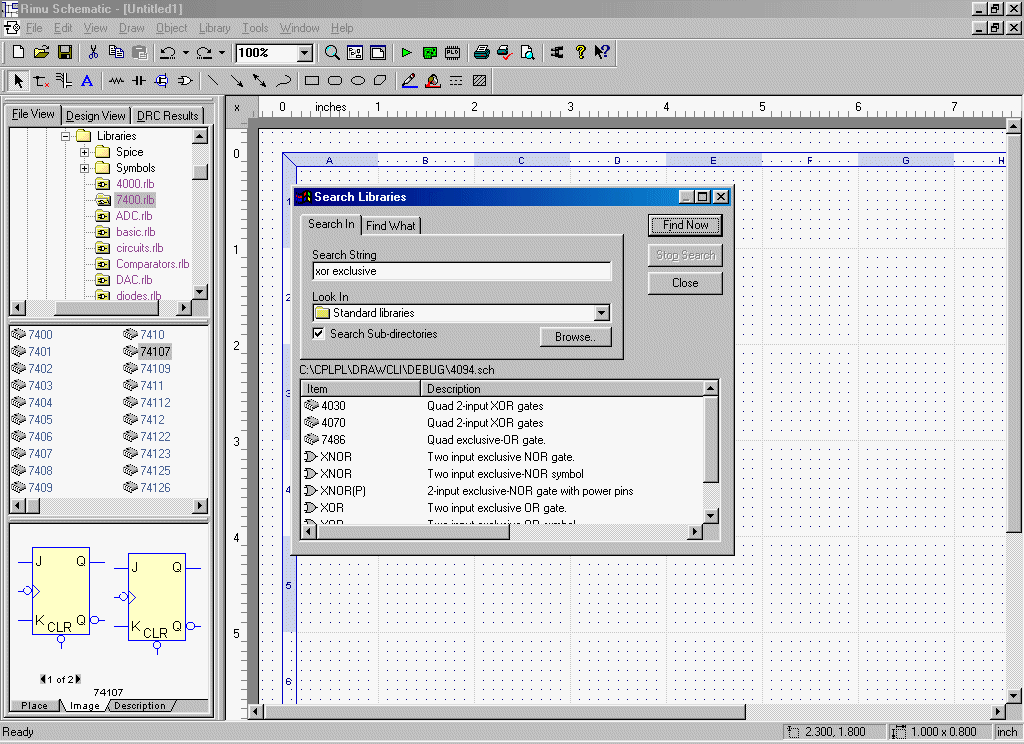

• Search libraries by part number
  and/or description.

• New components and libraries can be created and edited easily.

• Floating/drop down palettes of frequently used symbols speed up your work.

• Snap to objects for easier drawing
  and wiring.

• Windows MDI interface.

• Multiple Undo / Redo command.

• 32 bit application runs under Windows 98, NT4.0, 2000 and XP operating systems.

• Standard Edition - designs with up to 500 pins possible.

• Professional Edition - design size limited only by available memory.

System Requirements:

200MHz or faster CPU.
32Mb or more RAM.
At least 10Mb free hard disk space.
Windows 95, 98, NT4, 2000 or XP operating system.

Download:

The demonstration version of Rimu Schematic
is limited to designs of no more than 100 pins.

schematic.zip (2.223 kB)

Note:

If you are upgrading from an earlier version of Rimu Schematic, and you have made changes to the libraries or symbol toolbars that you want to keep, please rename or copy the libraries into a different directory before installing the new version, or they may be overwritten.
